8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This integrated circuit offers 24 I/O pins, 192B RAM, and supports I2C, SPI, and UART interfaces. It includes 3 timers/counters, 2 PWM channels, and an internal oscillator. Operating from 2.5V to 5.5V, this RoHS compliant component is housed in a 28-pin SOIC package.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F723AT-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, USART, UART
Length
17.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of Bits
8
Number of I/Os
24
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F723AT-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F723AT-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

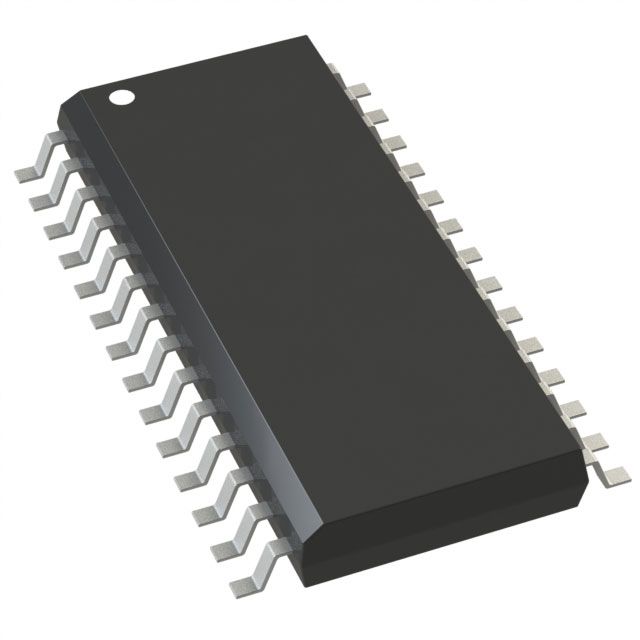

Product Images
