8-bit Flash microcontroller featuring an 8b data bus width and a 20MHz core frequency. Offers I2C, SPI, SCI, UART, and USART interfaces. Includes 7KB of FLASH memory, 192B RAM, and 25 programmable I/O pins. Operates from 2.3V to 5.5V supply voltage with a temperature range of -40°C to 85°C. Surface mountable in a 28-pin SSOP package, this RoHS compliant component includes a watchdog timer and PWM peripherals.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F723T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SCI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
25
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F723T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F723T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

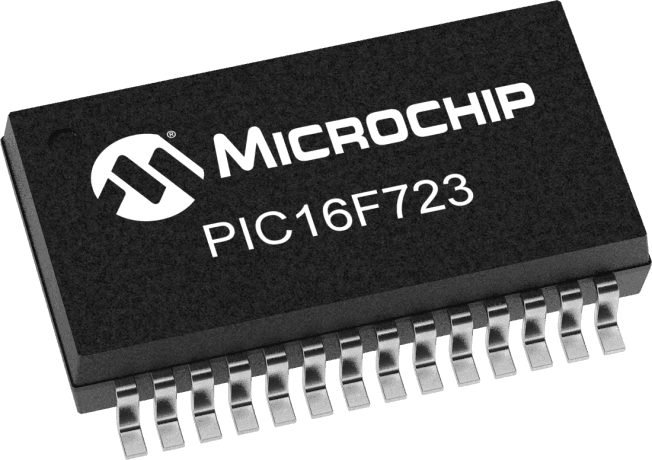

Product Images
