8-bit Flash microcontroller featuring a PIC core architecture, operating at up to 20MHz. This surface-mount device, housed in a 28-pin SSOP package, offers 22 programmable I/O pins and includes I2C, SPI, and SSP interfaces. It boasts 3.5KB of FLASH memory, 128B of RAM, and three timers/counters, with peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Operating within a voltage range of 2V to 5.5V, it supports temperatures from -40°C to 125°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F72T-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Series
PIC® 16F
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16F72T-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F72T-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

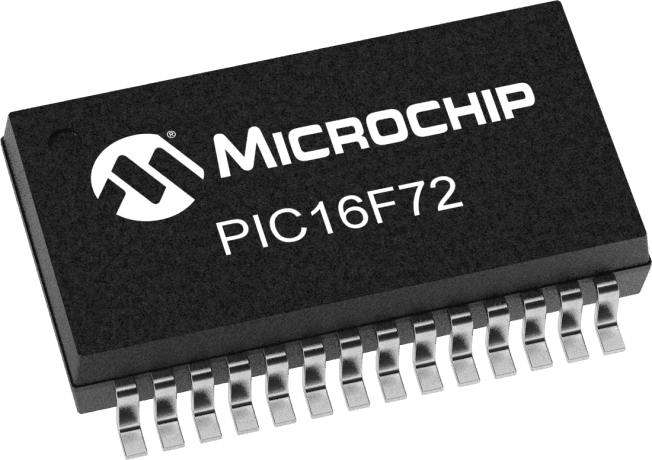

Product Images
