8-bit RISC Flash microcontroller operating at up to 20MHz. Features 7KB Flash memory, 192B RAM, and 22 programmable I/Os. Supports I2C, SPI, and USART/UART interfaces, with 3 timers/counters and PWM peripheral. Packaged in a 28-pin SOIC (SO-28) surface mount case, operating from 4V to 5.5V supply voltage. RoHS compliant with a maximum operating temperature of 125°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F73-E/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
27
Packaging
Rail/Tube
Peripherals
PWM
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F73-E/SO Datasheet
Download the complete datasheet for Microchip PIC16F73-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

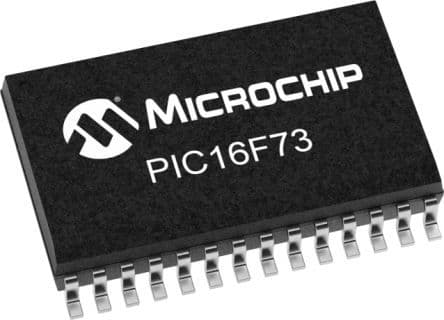

Product Images
