8-bit RISC microcontroller featuring 7KB FLASH memory and 368B RAM. Operates at a 20MHz maximum frequency with an 8-bit data bus width. Offers I2C, SPI, and UART interfaces, along with 11 A/D converter channels and 3 PWM channels. Packaged in a 28-pin SOIC for surface mounting, with an operating temperature range of -40°C to 85°C. Includes integrated peripherals such as Brown-out Detect/Reset, POR, WDT, and I2C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F737-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
0.093inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.704inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F737-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F737-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

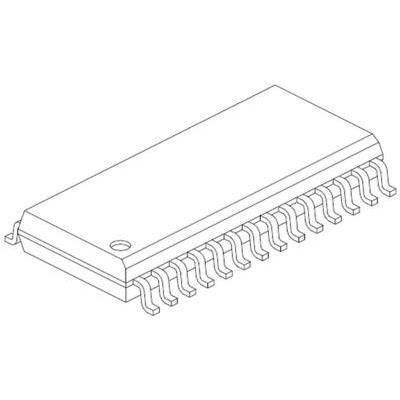

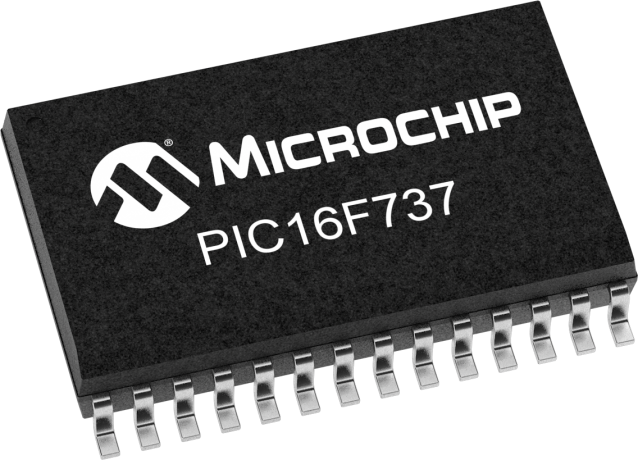

Product Images
