8-bit RISC microcontroller featuring 20MHz clock speed and 7KB FLASH program memory. Offers 368B RAM, 25 programmable I/Os, and 3 PWM channels. Supports I2C, SPI, and UART/USART interfaces. Operates from 4V to 5.5V supply with an internal oscillator. Packaged in a 28-pin SSOP for surface mounting, this RoHS compliant component includes a watchdog timer and brown-out detect.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F737-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
3
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F737-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F737-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

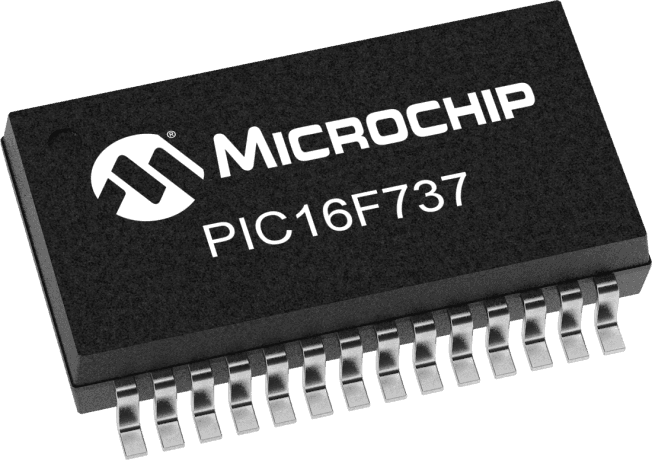

Product Images
