8-bit RISC Flash Microcontroller, operating at 20 MHz, featuring 7KB of FLASH memory and 368B of RAM. This surface-mount device offers 36 programmable I/O pins, 14 ADC channels, and integrated I2C, SPI, and UART/USART interfaces. It includes 3 timers/counters, a watchdog timer, and peripherals like Brown-out Detect/Reset and POR. Designed for a 4V to 5.5V operating supply voltage, it functions within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F747-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
8.15mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of ADC Channels
14
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
8.15mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F747-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F747-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

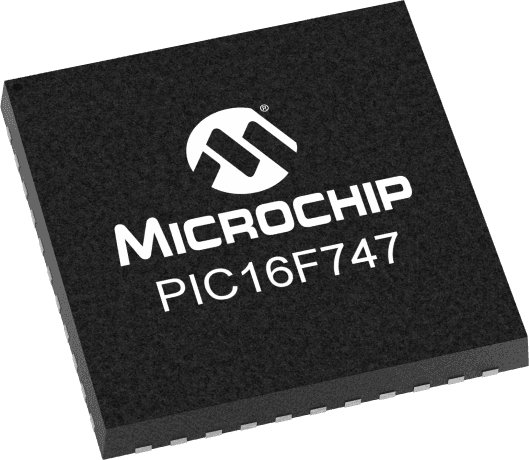

Product Images
