8-bit RISC microcontroller featuring 20MHz operation and 14KB FLASH memory. This surface-mount device offers 33 programmable I/O pins and supports I2C, SPI, and USART/UART interfaces. It includes 3 timers/counters, a watchdog timer, and peripherals like Brown-out Detect/Reset and POR. Operating voltage ranges from 4V to 5.5V, with a maximum power dissipation of 1W and an operating temperature range of -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F77-E/PT technical specifications.
General
Access Time
20us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F77-E/PT Datasheet
Download the complete datasheet for Microchip PIC16F77-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

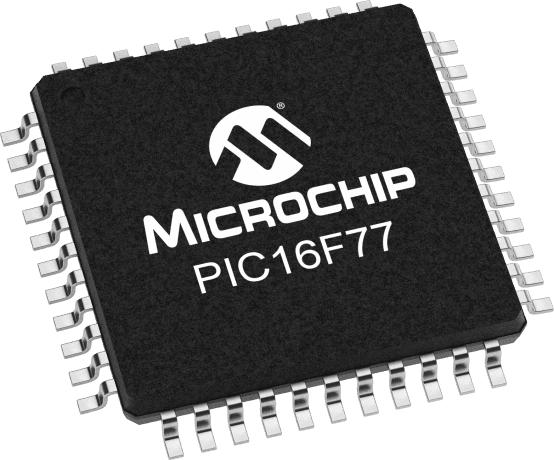

Product Images
