8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of FLASH/EEPROM memory. This through-hole component offers 13 programmable I/O pins, one timer/counter, and integrated POR and WDT peripherals. Operating from a 4V to 5.5V supply, it boasts an 8-bit address and data bus, with 68 bytes of RAM. Packaged in a PDIP-18, it supports external oscillators and is RoHS compliant.
Frequency20MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F84A-20/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
3.68mm
Lead Free
Lead Free
Length
22.99mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
4V
Mount
Through Hole
Number of A/D Converters
0
Number of Bits
8
Number of I/Os
13
Number of I2C Channels
0
Number of Programmable I/O
13
Number of SPI Channels
0
Number of Timers/Counters
1
Number of UART Channels
0
Number of USB Channels
0
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
2mA
Termination
Through Hole
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84A-20/P Datasheet
Download the complete datasheet for Microchip PIC16F84A-20/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

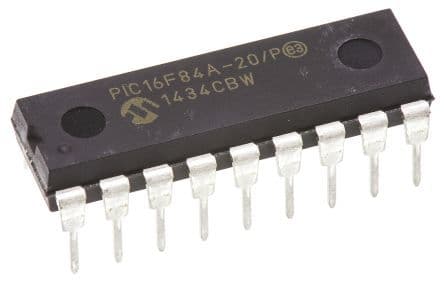

Product Images
