8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of FLASH memory. This surface-mount device operates from a 4V to 5.5V supply, with a typical operating voltage of 5V, and offers 13 programmable I/O pins. Includes a watchdog timer and power-on reset peripheral. Packaged in an 18-pin SOIC case, it supports an external oscillator and operates within a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F84AT-20I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84AT-20I/SO Datasheet
Download the complete datasheet for Microchip PIC16F84AT-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

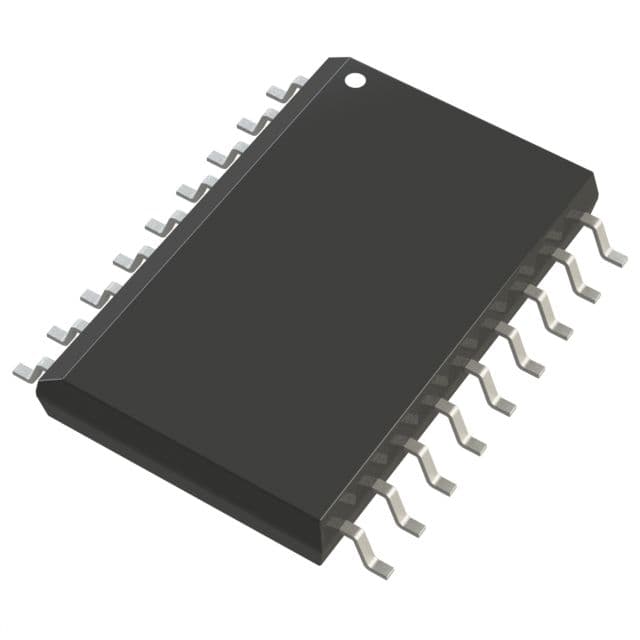

Product Images
