8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB FLASH memory. This through-hole mounted device offers 128B RAM, 22 I/O pins, and includes peripherals such as USART, UART, and a watchdog timer. Operating from 4V to 5.5V, it supports an 8-bit address and data bus, with an access time of 20µs. The microcontroller is housed in a 28-pin DIP package and operates within a temperature range of -40°C to 85°C.
Frequency20MHz
PackageDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F870-I/SP technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
3.43mm
Interface
USART, UART
Lead Free
Lead Free
Length
35.18mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH, , EEPROM
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.6mA
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F870-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F870-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

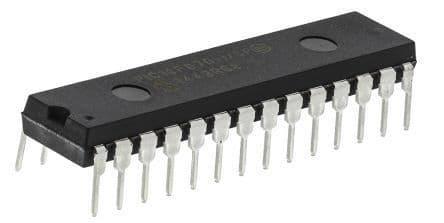

Product Images
