8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 22 programmable I/Os, 5 ADC channels, 1 PWM channel, and 3 timers/counters. Supports USART/UART interface and is housed in a 28-pin SSOP package for surface mounting. Operating voltage range is 4V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F870-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
1.83mm
Interface
USART, UART
Lead Free
Lead Free
Length
10.34mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
4V
Mount
Surface Mount
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.6mA
Watchdog Timer
Yes
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F870-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F870-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

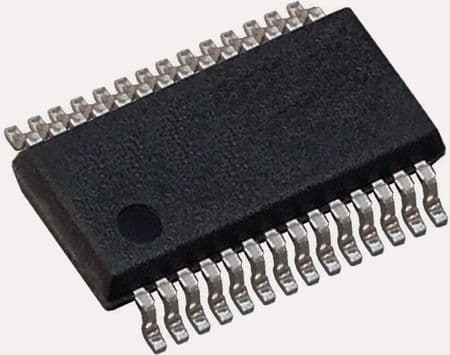

Product Images
