8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at a maximum frequency of 20MHz with an 8-bit address and data bus. Supports I2C, SPI, and UART interfaces, along with 5 analog input channels and 1 A/D converter. This through-hole component is housed in a 28-pin DIP package and operates within a temperature range of -40°C to 85°C. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency20MHz
PackageDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F872-I/SP technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
3.43mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
35.18mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.6mA
Termination
Through Hole
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F872-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F872-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

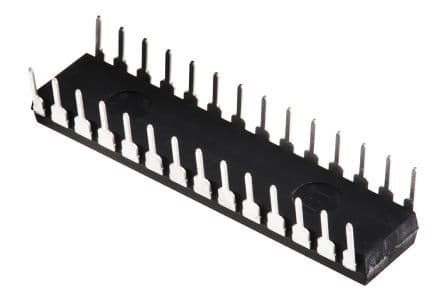

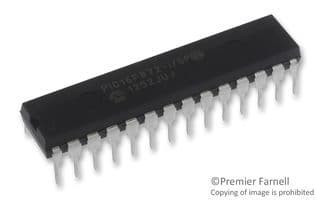

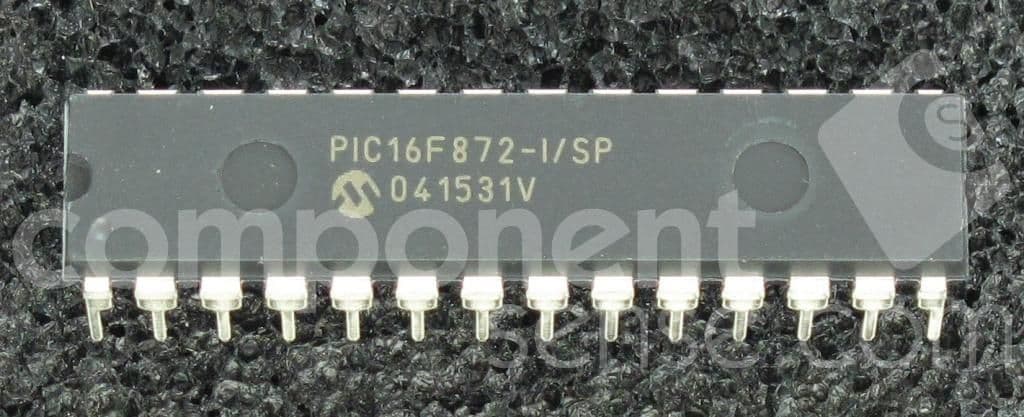

Product Images
