8-bit RISC microcontroller featuring 20MHz clock speed and 7KB FLASH memory. Offers 33 programmable I/Os, 8 analog input channels with one A/D converter, and multiple communication interfaces including USART, I2C, and SPI. Includes 2 PWM channels, 3 timers/counters, and integrated peripherals like Brown-out Detect/Reset and Watchdog Timer. Operates within a 4V to 5.5V supply voltage range and is housed in a PLCC package.
Frequency20MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16F874-20/L technical specifications.
General
| Access Time | 20us |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 3.68mm |
| Interface | USART, I2C, SPI, UART, SSP |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 33 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Number of USB Channels | 0 |
| Oscillator Type | External |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 192B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F874-20/L Datasheet
Download the complete datasheet for Microchip PIC16F874-20/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

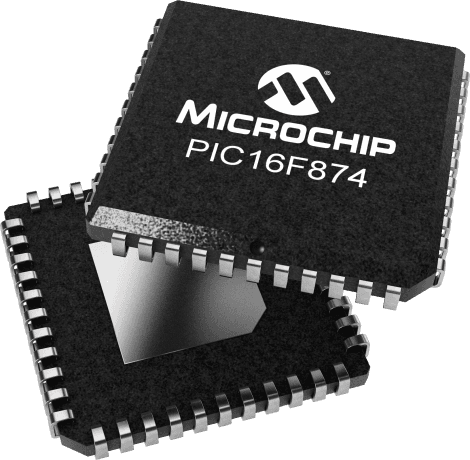

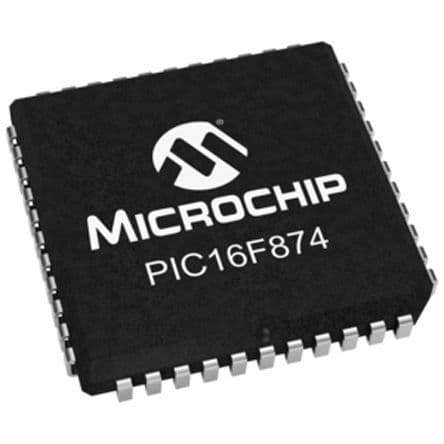

Product Images
