8-bit RISC microcontroller featuring 20MHz clock speed and 14KB FLASH memory. This PDIP-28 packaged MCU offers 22 programmable I/O pins, 368B RAM, and integrated peripherals including USART, I2C, SPI, UART, SSP, Brown-out Detect/Reset, POR, PWM, and WDT. Operating from 4V to 5.5V, it supports an access time of 20µs and has 5 ADC channels, 2 PWM channels, and 3 timers/counters. With a max operating temperature of 85°C, this RoHS compliant component is designed for general-purpose embedded applications.
Frequency20MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC16F876-20I/SP technical specifications.
General
Access Time
20us
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
3.43mm
Interface
USART, I2C, SPI, UART, SSP
Lead Free
Lead Free
Length
35.18mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F876-20I/SP Datasheet
Download the complete datasheet for Microchip PIC16F876-20I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

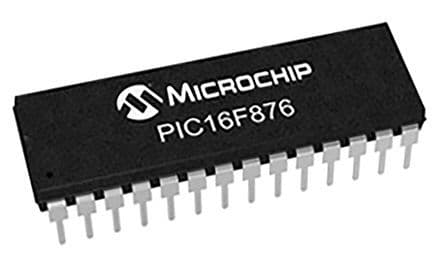

Product Images
