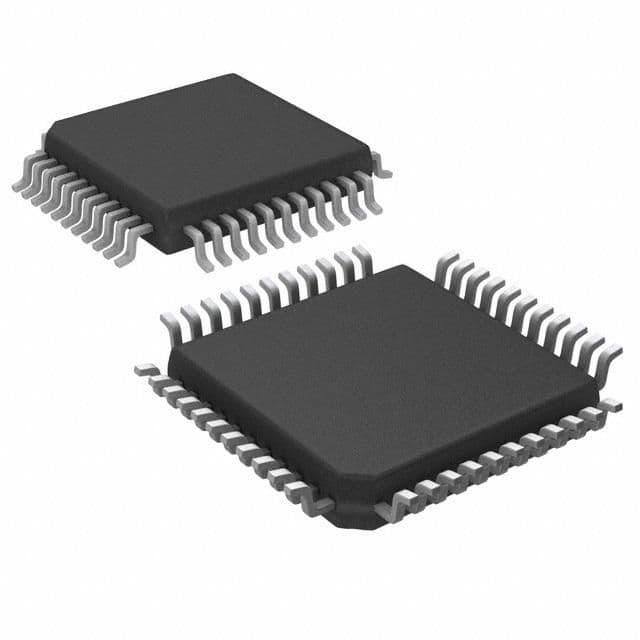

8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at up to 4MHz with an 8-bit data bus width and 33 programmable I/Os. Includes multiple interfaces such as USART, I2C, SPI, and UART, along with peripherals like PWM and I2C. This lead-free, RoHS compliant component is housed in a PQFP44 package with dimensions of 10.1mm x 10.1mm x 2.1mm. It offers 8 analog input channels, 2 PWM channels, 3 timers/counters, and a watchdog timer.
Frequency4MHz
PackageQFP
Quick Jump:
Technical Specifications

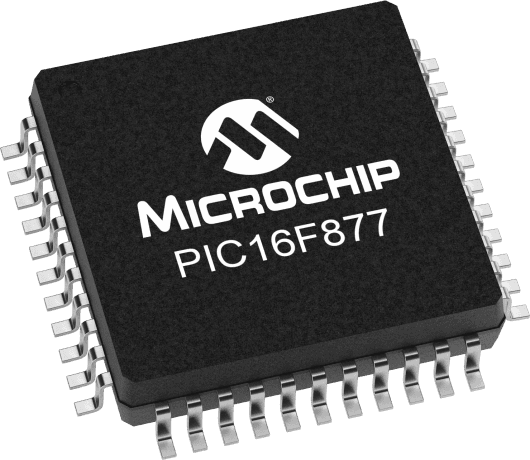

Microchip PIC16F877-04/PQ technical specifications.
General
| Access Time | 4us |
| Package/Case | QFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Height | 2.1mm |
| Interface | USART, I2C, SPI, UART, SSP |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Supply Voltage | 4V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 33 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Package Quantity | 96 |
| Packaging | Tray |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 368B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F877-04/PQ Datasheet
Download the complete datasheet for Microchip PIC16F877-04/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
