8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at 4MHz with an 8-bit data bus width and external oscillator. Offers 33 programmable I/O pins, 3 timers/counters, and interfaces including USART, I2C, and SPI. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, and Watchdog Timer. Operates from 4V to 5.5V supply voltage, with a maximum power dissipation of 1W. Packaged in a PQFP44 (QFP) format, this lead-free and RoHS compliant component is suitable for operation between -40°C and 125°C.
Frequency4MHz
PackageQFP
Quick Jump:
Technical Specifications
Microchip PIC16F877-04E/PQ technical specifications.
General
Access Time
4us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F877-04E/PQ Datasheet
Download the complete datasheet for Microchip PIC16F877-04E/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

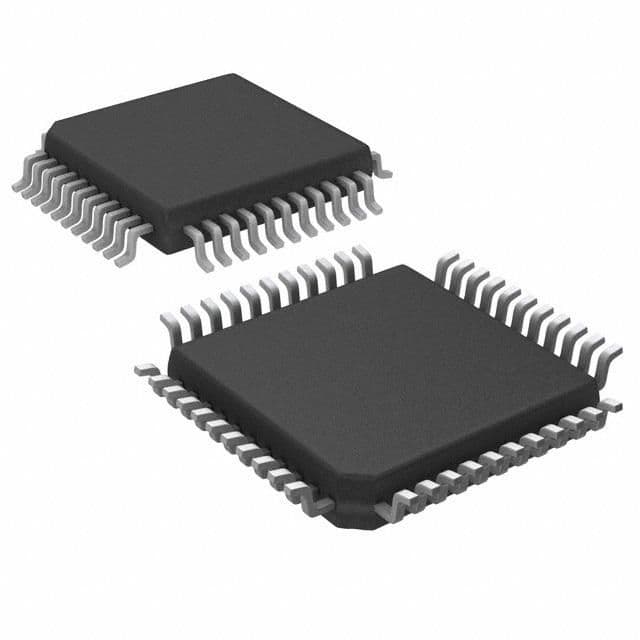

Product Images
