8-bit PIC RISC microcontroller featuring 14KB Flash memory and 368B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 33 programmable I/O pins, 8 analog input channels with one A/D converter, and multiple communication interfaces including USART, I2C, SPI, and UART. Includes 2 PWM channels, 3 timers/counters, and peripherals like Brown-out Detect, POR, and Watchdog Timer. Packaged in a 44-pin PLCC with a 5V operating supply voltage.
Frequency20MHz
PackagePLCC
Current1.6mA
Quick Jump:
Technical Specifications
Microchip PIC16F877-20/L technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 3.68mm |
| Interface | USART, I2C, SPI, UART, SSP |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 33 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 368B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Supply Current | 1.6mA |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F877-20/L Datasheet
Download the complete datasheet for Microchip PIC16F877-20/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

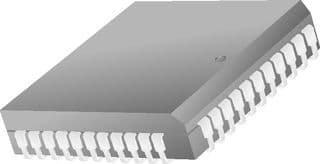

Product Images
