8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at up to 20MHz with an 8-bit data bus width. Includes multiple interfaces such as USART, I2C, SPI, and UART, along with 33 programmable I/Os and 2 PWM channels. Peripherals include Brown-out Detect/Reset, POR, WDT, and I2C. Packaged in a PLCC with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16F877-20I/L technical specifications.
General
Access Time
20us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.16inch
Interface
USART, I2C, SPI, UART, SSP
Lead Free
Lead Free
Length
0.656inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
0.656inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F877-20I/L Datasheet
Download the complete datasheet for Microchip PIC16F877-20I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

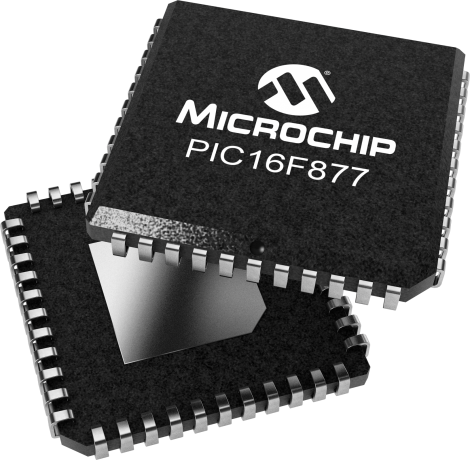

Product Images
