8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 33 programmable I/Os, 8 ADC channels, 2 PWM channels, and multiple communication interfaces including I2C, SPI, and UART. Designed for surface mount with a PLCC package, operating from 4V to 5.5V and a temperature range of -40°C to 85°C. Includes integrated peripherals like Brown-out Detect, POR, WDT, and SSP.
Frequency20MHz
PackagePLCC
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F877A-I/L technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 14KB |
| Frequency | 20MHz |
| Height | 3.68mm |
| Interface | I2C, SPI, USART, UART, SSP |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 14.3KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 33 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 33 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 368B |
| Reach SVHC Compliant | No |
| Series | PIC® 16F Series |
| Supply Current | 1.6mA |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F877A-I/L Datasheet
Download the complete datasheet for Microchip PIC16F877A-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

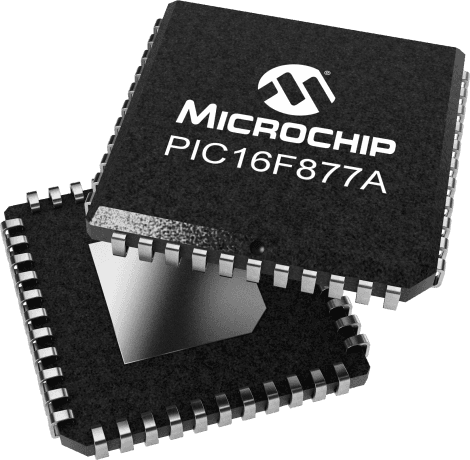

Product Images
