8-bit RISC microcontroller featuring 14KB FLASH program memory and 368B RAM. Operates at 4MHz with an 8-bit data bus, supporting USART, I2C, and SPI interfaces. Includes 3 timers/counters and 33 programmable I/O pins, with PWM and watchdog timer peripherals. Packaged in a PLCC (PQCC44) with a 4V to 5.5V operating supply voltage range and a maximum operating temperature of 70°C.
Frequency4MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16F877T-04/L technical specifications.
General
Access Time
4us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
USART, I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
500
Packaging
Tape and Reel
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F877T-04/L Datasheet
Download the complete datasheet for Microchip PIC16F877T-04/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

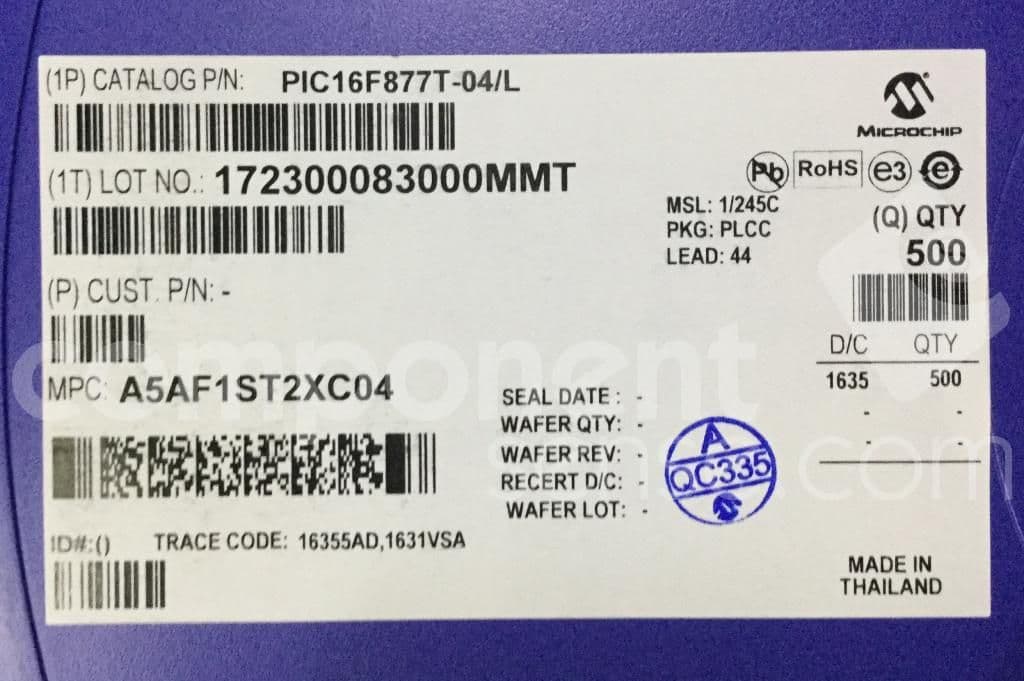

Product Images
