8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This surface mount device offers 35 programmable I/Os, 3 timers/counters, and supports I2C, SPI, and UART/USART interfaces. Operating from 2V to 5.5V, it includes integrated peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Packaged in a 44-pin QFN, this lead-free component is RoHS compliant and operates within a temperature range of -40°C to 125°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F884-E/ML technical specifications.
General
| Access Time | 20us |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 35 |
| Number of Programmable I/O | 35 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F884-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F884-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

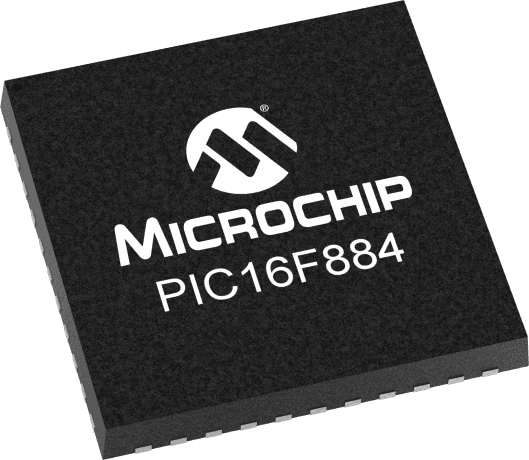

Product Images
