8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM, operating at up to 20MHz. This surface mount device offers 24 programmable I/Os, 11 ADC channels, and integrated I2C, SPI, and UART interfaces. It includes multiple peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer, with an operating temperature range of -40°C to 85°C and a maximum supply voltage of 5.5V. The component is housed in a 6x6mm QFN package and is RoHS compliant.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F886-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F886-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F886-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

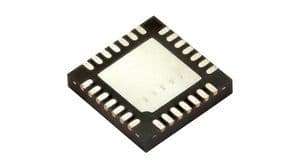

Product Images
