8-bit RISC microcontroller featuring 14KB FLASH memory and 352B RAM. Operates at up to 20MHz with an 8-bit data bus. Supports I2C, SPI, SSP, UART, and USART interfaces. Offers 35 programmable I/O pins, 3 timers/counters, and a watchdog timer. Packaged in a 44-pin TQFP (TQFP-44) for surface mounting, with an operating voltage range of 4.5V to 5.5V and a maximum power dissipation of 800mW. Suitable for operation between -40°C and 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F917-E/PT technical specifications.
General
Access Time
20us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
35
Number of Programmable I/O
35
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
160
Packaging
Tray
Radiation Hardening
No
RAM Size
352B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F917-E/PT Datasheet
Download the complete datasheet for Microchip PIC16F917-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

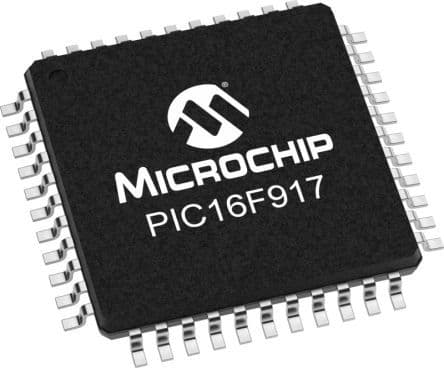

Product Images
