8-bit RISC microcontroller featuring 14KB FLASH memory and 352B RAM, operating at up to 20MHz. This surface mount device offers 35 programmable I/Os, multiple communication interfaces including I2C, SPI, and UART, and integrated peripherals such as 8 ADC channels and 2 PWM channels. Designed for a wide operating temperature range of -40°C to 85°C with a supply voltage of 4.5V to 5.5V.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F917-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
14KB
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
352B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F917-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F917-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

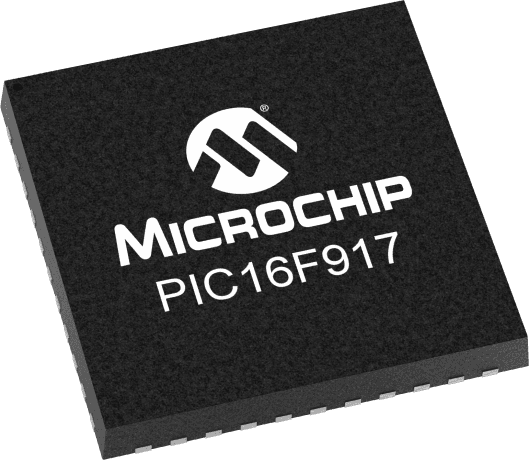

Product Images
