8-bit RISC microcontroller featuring 1.5KB EPROM/OTP memory and 25B RAM. Operates at up to 4MHz with an 8-bit data bus and 12 programmable I/Os. Supports a wide supply voltage range of 3.5V to 15V and includes a watchdog timer. Packaged in an 18-pin SOIC (SO) surface-mount form factor, this lead-free component offers a maximum power dissipation of 800mW and an operating temperature range of 0°C to 70°C.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16HV540-04/SO technical specifications.
General
| Access Time | 4us |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 15V |
| Memory Size | 1.5KB |
| Memory Type | EPROM, , OTP |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of I/Os | 12 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 1 |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 25B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16HV540-04/SO Datasheet
Download the complete datasheet for Microchip PIC16HV540-04/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

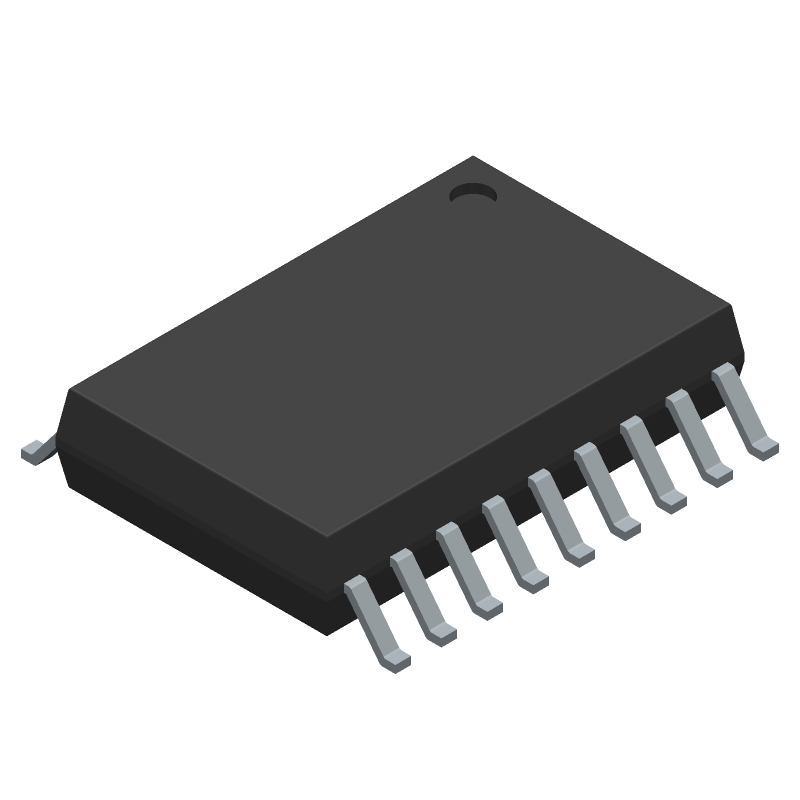

Product Images
