8-bit RISC microcontroller featuring a 4MHz clock speed and 3.5KB of OTP memory. This integrated circuit offers 22 programmable I/O pins, three timers/counters, and supports I2C, SPI, and USART interfaces. Operating from a 2.5V to 6V supply, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 28-pin SSOP, this lead-free and RoHS compliant component is suitable for operation between 0°C and 70°C.
Frequency4MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LC62A-04/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
0°C
Min Supply Voltage
2.5V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC62A-04/SS Datasheet
Download the complete datasheet for Microchip PIC16LC62A-04/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

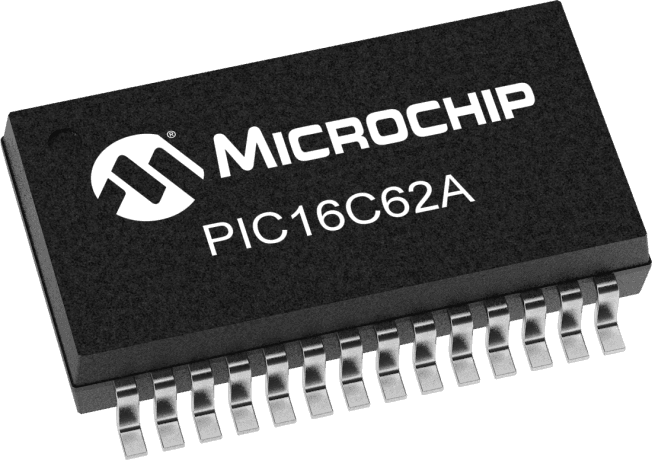

Product Images
