8-bit microcontroller featuring 7KB OTP memory and 176B RAM. Operates with an 8b data bus width and a maximum frequency of 4MHz. Supports RS-232 interface and includes peripherals such as Brown-out Detect/Reset, POR, and WDT. Housed in a 40-pin PDIP package, this lead-free and RoHS compliant component functions across a -40°C to 85°C temperature range with supply voltages from 3V to 6V.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LC662-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
RS-232
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of Programmable I/O
33
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
176B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC662-04I/P Datasheet
Download the complete datasheet for Microchip PIC16LC662-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

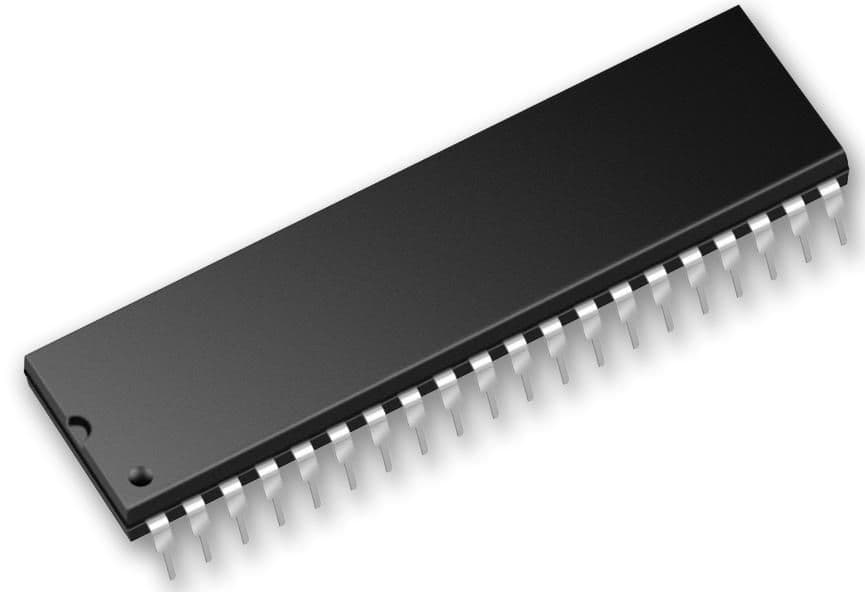

Product Images
