8-bit RISC microcontroller featuring 14KB OTP memory and 368B RAM. Operates at up to 4MHz with an 8-bit data bus width. Offers I2C, SPI, and USART/UART interfaces, with 33 programmable I/Os and 3 timers/counters. Supports a supply voltage range of 2.5V to 6V and operates from -40°C to 85°C. Includes a watchdog timer and is RoHS compliant.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LC67-04I/PQ technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
OTP
Min Supply Voltage
2.5V
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
3
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC67-04I/PQ Datasheet
Download the complete datasheet for Microchip PIC16LC67-04I/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

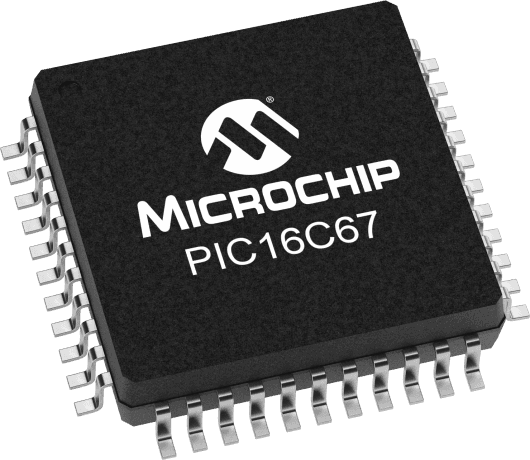

Product Images
