8-bit RISC microcontroller featuring a 4MHz clock speed and OTP memory. This integrated circuit offers 0.875KB of memory, 36 bytes of RAM, and 13 programmable I/O pins. It includes a single timer/counter, 4 ADC channels, and peripherals such as Brown-out Detect/Reset, PWM, and a Watchdog Timer. Operating from a 4V to 6V supply, this SOIC-packaged microcontroller has an access time of 4µs and a maximum operating temperature of 70°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LC710-04/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
2.342mm
Lead Free
Contains Lead
Length
11.74mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
0.875KB
Memory Type
OTP
Min Supply Voltage
4V
Number of ADC Channels
4
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, PWM, WDT
Radiation Hardening
No
RAM Size
36B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
7.595mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC710-04/SO Datasheet
Download the complete datasheet for Microchip PIC16LC710-04/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

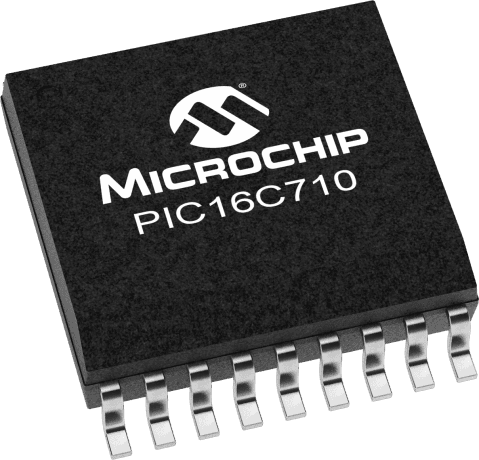

Product Images
