8-bit microcontroller (MCU) with 3.5KB OTP memory, 128B RAM, and 13 programmable I/Os. Features a PIC core architecture operating at up to 4MHz, with an access time of 4µs. Includes Brown-out Detect/Reset, PWM, and WDT peripherals. Operates from a 4V to 6V supply voltage range, with a typical 5V operating voltage. Packaged in an 18-pin SOIC package, this lead-free and RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LC715T-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC715T-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16LC715T-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

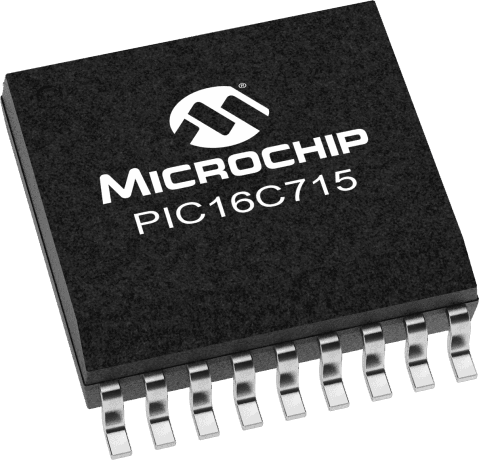

Product Images
