8-bit microcontroller with 3.5KB OTP memory, operating at up to 20MHz. Features include I2C, SPI, and SSP interfaces, 15 I/O pins, and 3 timers/counters. This through-hole mounted PDIP package offers 256B RAM and supports a supply voltage range of 2.5V to 5.5V. Includes Brown-out Detect/Reset, POR, PWM, and WDT peripherals.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16LC770-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
2.5V
Mount
Through Hole
Number of Bits
8
Number of I/Os
15
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC770-I/P Datasheet
Download the complete datasheet for Microchip PIC16LC770-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

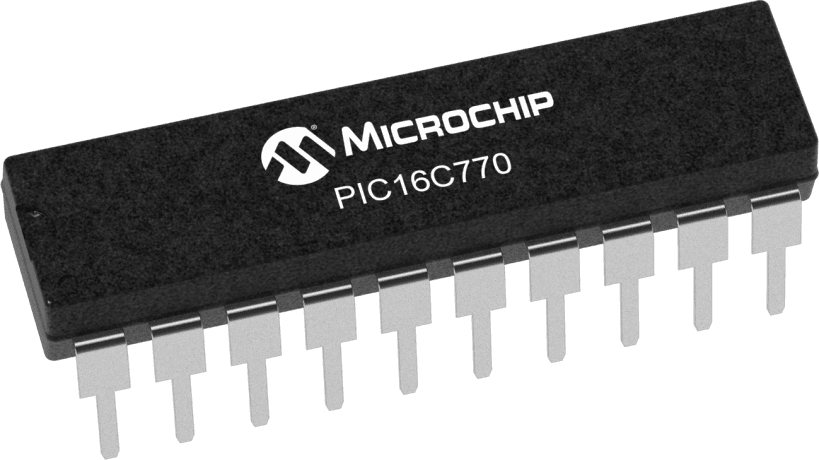

Product Images
