8-bit RISC microcontroller featuring an 8-bit data bus and a 20MHz maximum frequency. This surface mount device offers 7KB of OTP/EPROM memory and 256B of RAM. Integrated peripherals include I2C, SPI, UART, USART, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating supply voltage ranges from 4V to 5.5V, with a maximum power dissipation of 1W. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LC774-I/PQ technical specifications.
General
Access Time
20us
Package/Case
QFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
96
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC774-I/PQ Datasheet
Download the complete datasheet for Microchip PIC16LC774-I/PQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

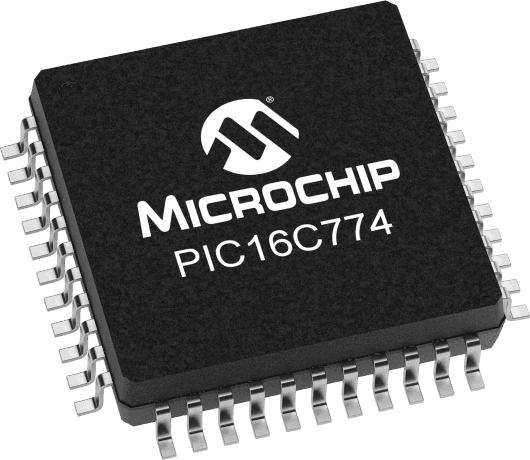

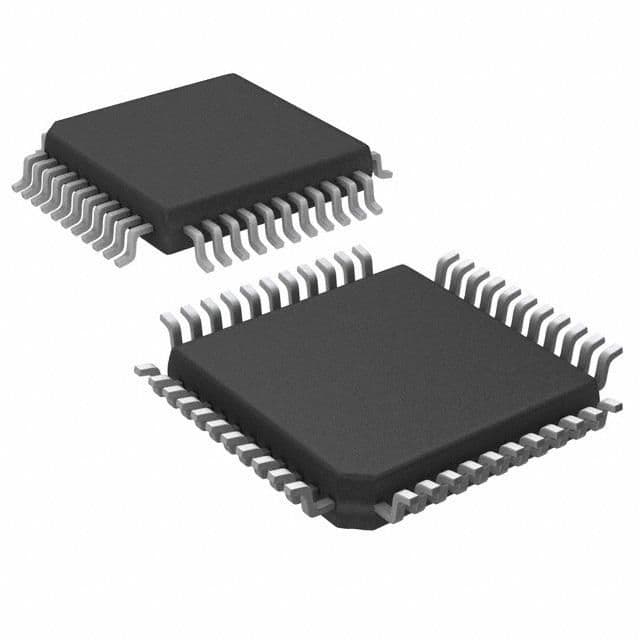

Product Images
