8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 4MHz. This OTP (One-Time Programmable) memory microcontroller offers 7KB of program memory and 176 bytes of RAM. Integrated peripherals include POR, PWM, WDT, and LCD support, with I2C and SPI interfaces for communication. It operates from a 2.5V to 6V supply and is housed in a 68-pin PLCC package.
Frequency4MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16LC924-04/L technical specifications.
General
| Access Time | 4us |
| Package/Case | PLCC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 6V |
| Memory Size | 7KB |
| Memory Type | OTP |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 25 |
| Number of Programmable I/O | 25 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 19 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 176B |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LC924-04/L Datasheet
Download the complete datasheet for Microchip PIC16LC924-04/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

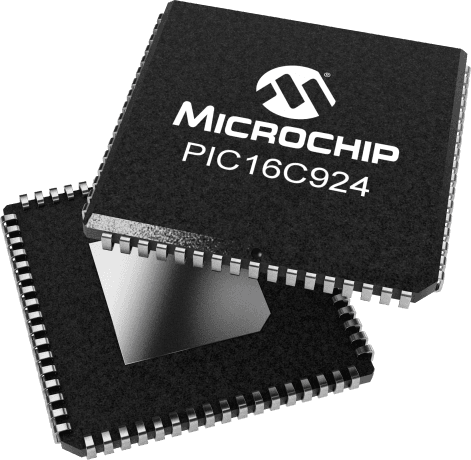

Product Images
