8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus width. Supports I2C and SPI interfaces, with 11 I/O pins and 12 programmable I/O pins. Includes 3 timers/counters, internal oscillator, and peripherals like PWM, WDT, Brown-out Detect/Reset, and POR. Rated for an operating supply voltage of 2.5V to 3.6V, with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 125°C.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1503-E/MG technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 11 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1503-E/MG Datasheet
Download the complete datasheet for Microchip PIC16LF1503-E/MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

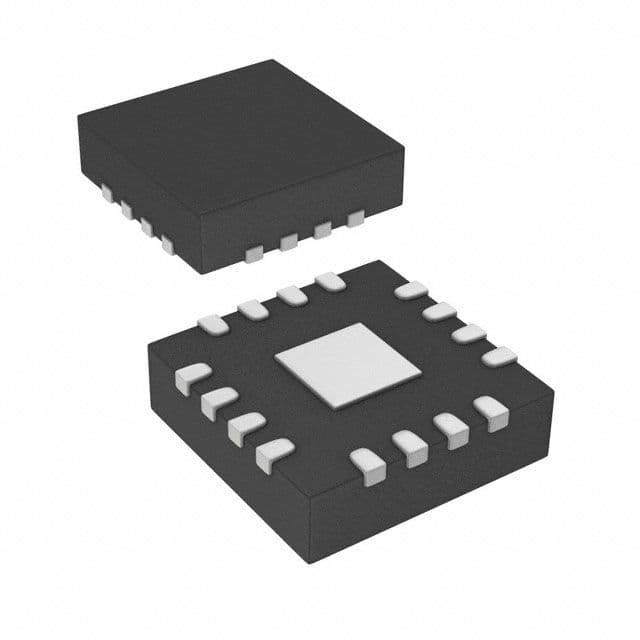

Product Images
