8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 3.5KB Flash memory, 128B RAM, and 11 I/O pins. Supports I2C and SPI interfaces, with 3 timers/counters and integrated peripherals including PWM and Watchdog Timer. Operates from 2.5V to 3.6V supply, with an internal oscillator. Packaged in QFN, this lead-free and RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1503T-I/MG technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 11 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1503T-I/MG Datasheet
Download the complete datasheet for Microchip PIC16LF1503T-I/MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

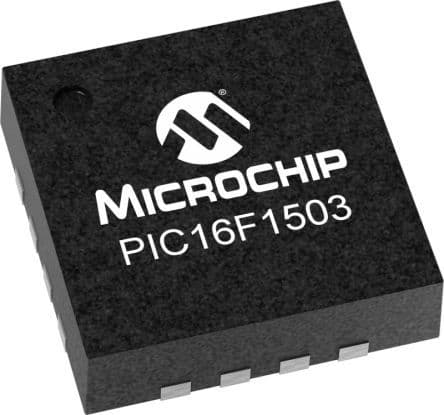

Product Images
