8-bit RISC microcontroller featuring 20MHz operation and 3.5KB FLASH memory. This QFN-packaged MCU offers 12-bit ADC with 1 channel, 17 I/Os, and 4 PWM channels. Operating voltage ranges from 2.5V to 3.6V, with an internal oscillator and integrated peripherals including Brown-out Detect, POR, and WDT. The component is RoHS compliant and operates within a temperature range of -40°C to 125°C.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1507-E/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
17
Number of Programmable I/O
18
Number of PWM Channels
4
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1507-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1507-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

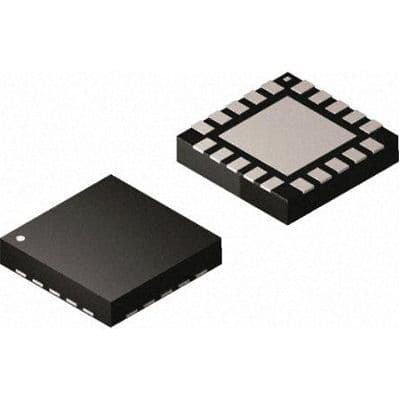

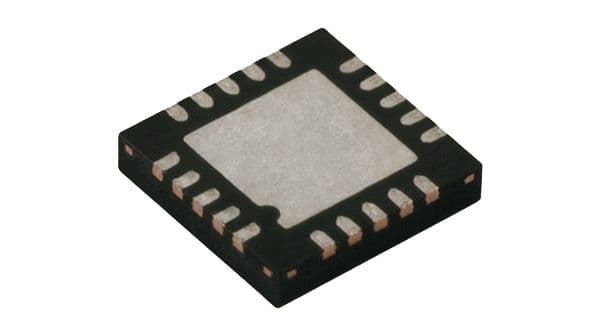

Product Images
