8-bit RISC microcontroller featuring 20MHz operation and 14KB FLASH memory. This integrated circuit offers 512B RAM, 35 I/Os, and supports I2C, SPI, and UART interfaces. It includes 2 PWM channels, 3 timers/counters, and 28 ADC channels with 1 A/D converter. Operating from 2.5V to 3.6V, this lead-free microcontroller is housed in a 44-pin TQFP package.
Frequency20MHz
PackageTQFP
Current118uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1517-I/PT technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.041inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
0.393inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
118uA
Watchdog Timer
Yes
Width
0.394inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1517-I/PT Datasheet
Download the complete datasheet for Microchip PIC16LF1517-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

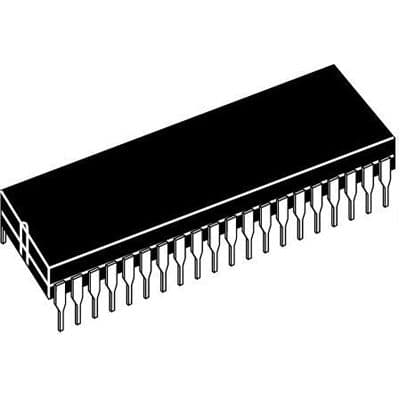

Product Images
