8-bit RISC microcontroller featuring 20MHz operation and 28KB FLASH memory. This PDSO28 packaged MCU offers 24 I/Os, including 25 programmable I/Os, and supports I2C, SPI, and UART interfaces. Key peripherals include 2 PWM channels, 3 timers/counters, a watchdog timer, and 17 ADC channels with 1 A/D converter. Operating from 2.5V to 3.6V, this lead-free, RoHS compliant component is suitable for applications within a -40°C to 85°C temperature range.
Frequency20MHz
PackageSOIC
Current118uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1518-I/SO technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
118uA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1518-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF1518-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

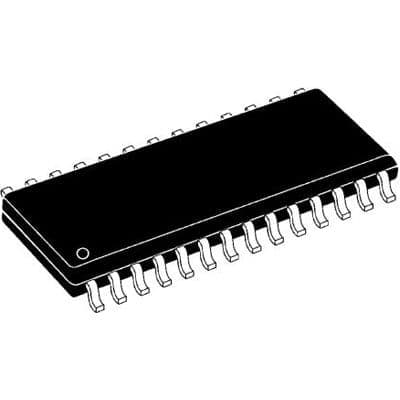

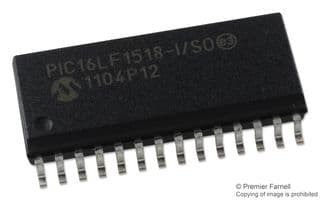

Product Images
