8-bit RISC microcontroller featuring 20MHz operation and 28KB FLASH memory. This PIC microcontroller offers 35 I/Os, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Integrated peripherals include a watchdog timer, brown-out detect, and 2 PWM channels. Operating from 2.5V to 3.6V, it boasts a 1KB RAM size and a wide temperature range of -40°C to 85°C. The compact 5x5mm QFN package ensures efficient integration.
Frequency20MHz
PackageQFN
Current118uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1519-I/MV technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.5mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
118uA
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1519-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1519-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

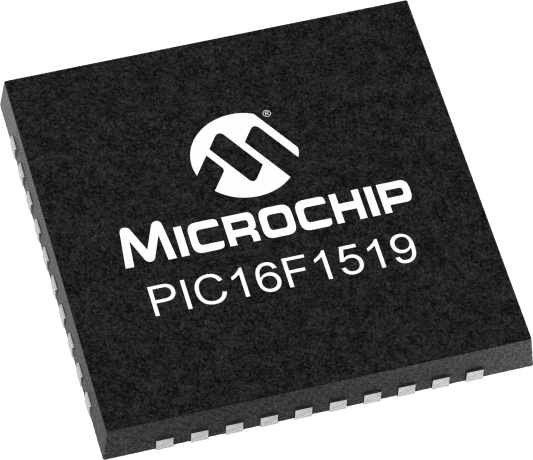

Product Images
