8-bit RISC microcontroller featuring 20MHz operation and 28KB FLASH memory. This PIC microcontroller offers 35 I/Os, including 36 programmable I/Os, and supports I2C, SPI, and USART interfaces. Operating from 2.5V to 3.6V, it includes 3 timers/counters, internal oscillator, and peripherals like PWM and WDT. Packaged in a QFN, this RoHS compliant component operates between -40°C and 85°C.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16LF1519T-I/MV technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
28KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1519T-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1519T-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

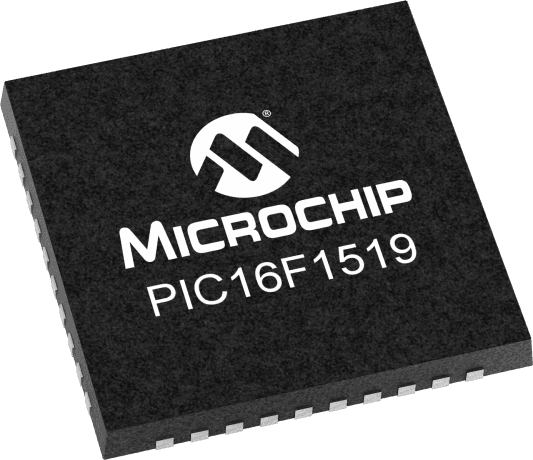

Product Images
