8-bit RISC microcontroller featuring 20MHz operation, 28KB FLASH memory, and 1.5KB RAM. This PIC microcontroller offers 53 programmable I/Os, multiple communication interfaces including SPI, I2C, and UART, and 10 PWM channels. Designed for efficiency with a 3.3V operating voltage and low supply current, it includes a watchdog timer and 30 ADC channels. Packaged in a 64-pin QFN, this lead-free component operates from -40°C to 85°C.
Frequency20MHz
PackageQFN
Current300uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1527-I/MR technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 0.95mm |
| Interface | SPI, I2C, UART, USART |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 28KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 30 |
| Number of Bits | 8 |
| Number of I/Os | 53 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 53 |
| Number of PWM Channels | 10 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 300uA |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1527-I/MR Datasheet
Download the complete datasheet for Microchip PIC16LF1527-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

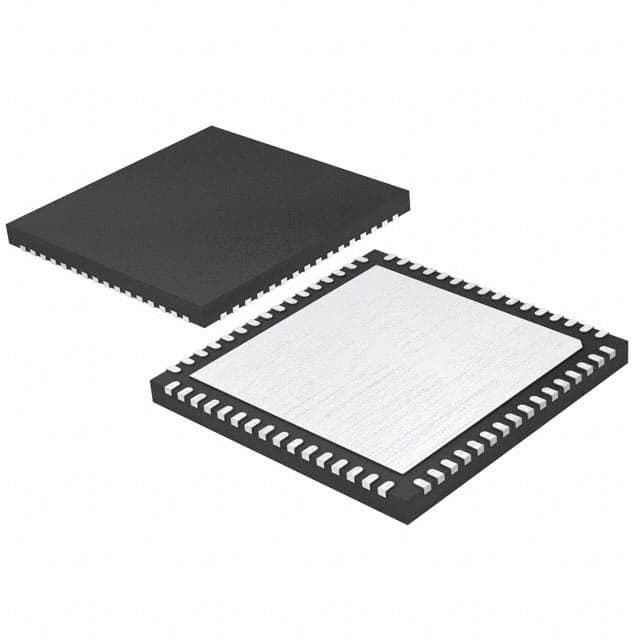

Product Images
