8-bit RISC microcontroller featuring 20MHz operation and 28KB FLASH memory. This integrated circuit offers 53 programmable I/O pins, 1.5KB RAM, and supports SPI, I2C, UART, and USART interfaces. Equipped with 30 A/D converter channels, 10 PWM channels, and 9 timers/counters, it operates from 2.5V to 3.6V with a maximum power dissipation of 800mW. The TQFP-64 package measures 10mm x 10mm x 1.05mm and is lead-free and RoHS compliant.
Frequency20MHz
PackageTQFP
Current300uA
Quick Jump:
Technical Specifications
Microchip PIC16LF1527-I/PT technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 1.05mm |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 28KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.5V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 30 |
| Number of Bits | 8 |
| Number of I/Os | 53 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 53 |
| Number of PWM Channels | 10 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Peripherals | POR, PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 300uA |
| Watchdog Timer | Yes |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1527-I/PT Datasheet
Download the complete datasheet for Microchip PIC16LF1527-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

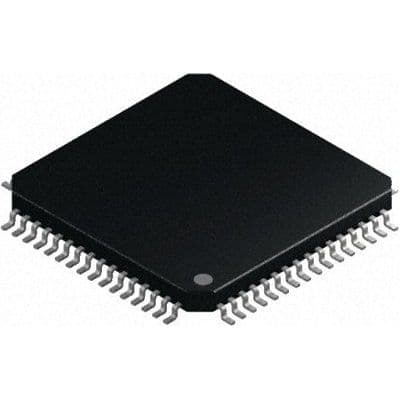

Product Images
