8-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 12 programmable I/O pins, 11 ADC channels, and 3 timers/counters. Integrated peripherals include I2C, SPI, USART, UART interfaces, along with Brown-out Detect/Reset, POR, PWM, and WDT functionality. It boasts 7KB of FLASH memory and 256B of RAM, with a supply voltage range of 1.8V to 3.6V. Packaged in a 4mm x 4mm QFN case, this lead-free component operates from -40°C to 85°C.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1554-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
4mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002014oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1554-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1554-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

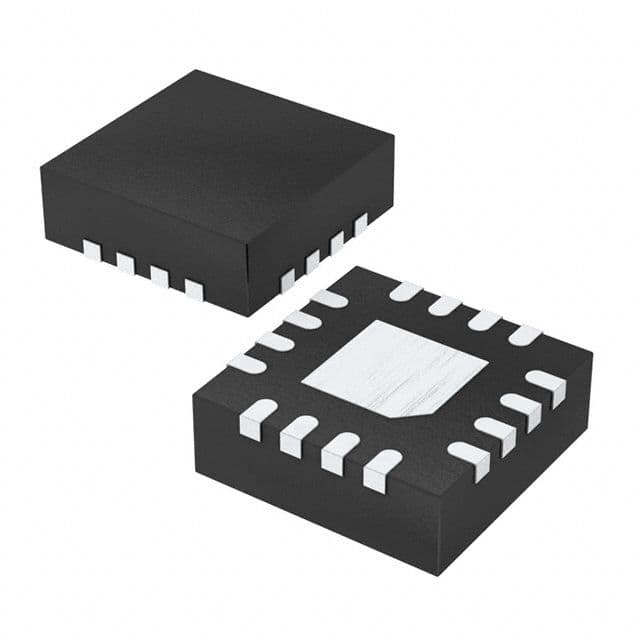

Product Images
