8-bit PIC microcontroller featuring a 32MHz core, 7KB Flash memory, and 256B RAM. Offers 12 programmable I/O pins, 11 ADC channels, and integrated I2C, SPI, and USART/UART interfaces. Includes 3 timers/counters, PWM, WDT, and operates from 1.8V to 3.6V supply. Packaged in a 4.5mm x 5.1mm x 1.1mm TSSOP for surface mounting.
Frequency32MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1554-I/ST technical specifications.
General
| Package/Case | TSSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.1mm |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 11 |
| Number of I/Os | 12 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| Weight | 0.004949oz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LF1554-I/ST Datasheet
Download the complete datasheet for Microchip PIC16LF1554-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

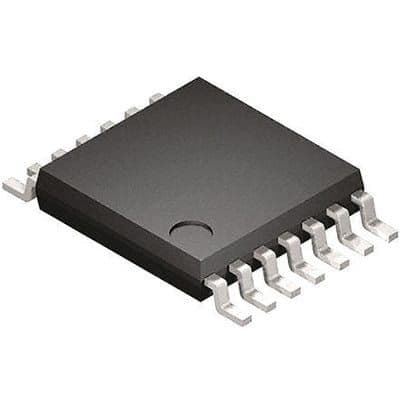

Product Images
