8-bit PIC microcontroller featuring 14KB FLASH memory and 512B RAM. Operates at up to 32MHz with 17 programmable I/O pins and 17 ADC channels. Supports I2C, SPI, and USART/UART interfaces. Includes internal oscillator, 3 timers/counters, and peripherals like PWM, WDT, Brown-out Detect/Reset, and POR. Available in PDIP package, RoHS compliant, with an operating temperature range of -40°C to 125°C.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16LF1559-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, USART, UART
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
17
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
22
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.079719oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1559-E/P Datasheet
Download the complete datasheet for Microchip PIC16LF1559-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

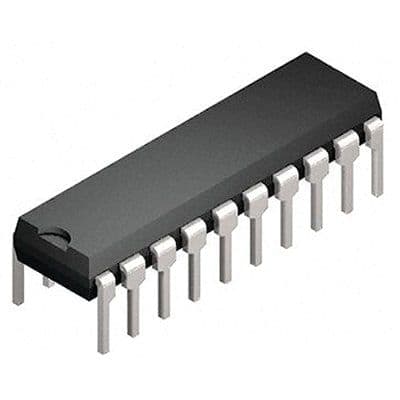

Product Images
