8-bit RISC microcontroller featuring a 32MHz core, 3.5KB FLASH memory, and 256B RAM. Offers 12 programmable I/Os, 8 ADC channels, and multiple communication interfaces including I2C, SPI, RS-232, and LIN. Operates from 1.8V to 3.6V with a low supply current of 8µA and includes peripherals like PWM and WDT. Packaged in a surface-mount SOIC case, suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageSOIC
Current8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1703-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.5mm
Interface
I2C, SPI, RS-232, LIN
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Weight
0.011923oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1703-I/SL Datasheet
Download the complete datasheet for Microchip PIC16LF1703-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

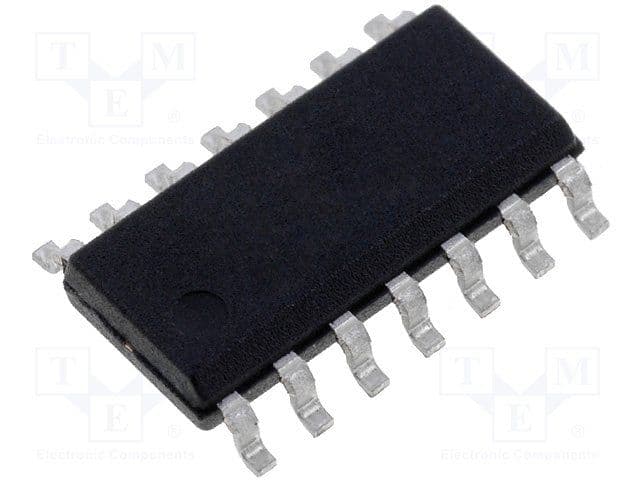

Product Images
