8-bit RISC microcontroller featuring a PIC core architecture. Offers 7KB of FLASH memory and 512B of RAM. Supports I2C, SPI, and UART/USART interfaces with 25 programmable I/O pins. Operates at up to 16MHz with a supply voltage range of 1.8V to 3.6V. Includes 17 ADC channels and 5 timers/counters, along with peripherals like PWM and WDT. Packaged in a QFN surface mount configuration, RoHS compliant, and rated for -40°C to 85°C.
Frequency16MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1713-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
5
Operating Supply Voltage
2.5V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002497oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1713-I/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1713-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

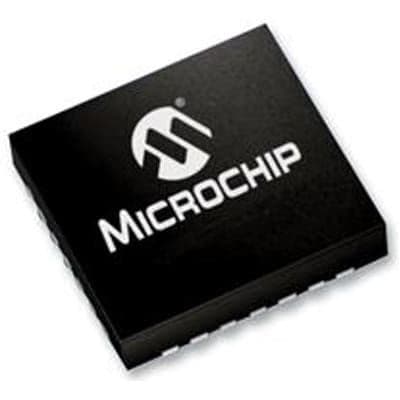

Product Images
