8-bit PIC microcontroller featuring 7KB FLASH memory and 512B RAM. Operates at up to 32MHz with 25 programmable I/Os and 17 ADC channels. Supports I2C, SPI, UART, USART, RS-232, and LIN interfaces. Includes 5 timers/counters, internal oscillator, and peripherals like Brown-out Detect, POR, PWM, and WDT. Surface mountable with a temperature range of -40°C to 85°C and a supply voltage of 2.3V to 5.5V.
Frequency32MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1713-I/MV technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART, RS-232, LIN
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002497oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1713-I/MV Datasheet
Download the complete datasheet for Microchip PIC16LF1713-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

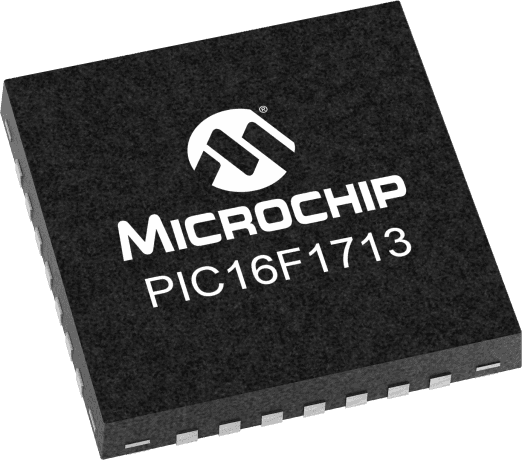

Product Images
