8-bit PIC RISC microcontroller featuring 14KB Flash memory and 1KB RAM. Operates from 1.8V to 3.6V with a maximum frequency of 16MHz. Offers 25 programmable I/Os and supports I2C, SPI, and UART/USART interfaces. Includes 5 timers/counters, 25 ADC channels, and integrated peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Surface mountable in a QFN package, suitable for operation between -40°C and 125°C.
Frequency16MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF1716-E/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
16MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
3.6V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
25
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
5
Operating Supply Voltage
2.5V
Oscillator Type
Internal
Package Quantity
61
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002497oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF1716-E/ML Datasheet
Download the complete datasheet for Microchip PIC16LF1716-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

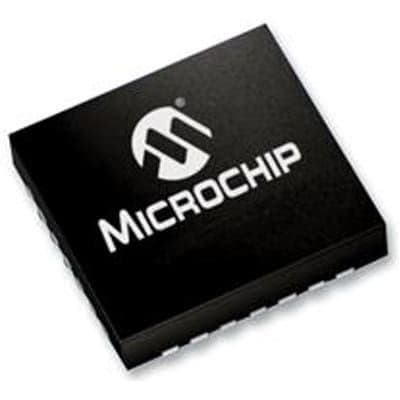

Product Images
